2013 GMC Terrain Problems

2013 Terrain Problems

This page is meant to give a broad overview of the most common problems with the 2013 GMC Terrain.  The Terrain is built on the Theta platform, which it shares with the Equinox. This page places an emphasis on engine problems and transmission problems, since those are the ones that’ll keep you from moving.

Contents

Most Common Problems

Engine Problems

Transmission Problems

Recalls

Here’s a road test on the 2010 Terrain, which is virtually identical to the ’13.

2013 GMC Terrain Common Issues

JD Power gives the 2013 Terrain a four out of five on Overall Quality and a 5/5 on Performance and Design.  They rate the Terrain at 3/5 on reliability for this model year.

Here’s there full article:

jdpower.com/cars/GMC/Terrain/2013

There were a total of 122 complaints made to the NHTSA about the 2013 GMC Terrain. Analyzing this data is a great way to determine the most common issues that can happen with your vehicle.

131 complaints out of hundreds of thousands of vehicles is a good sample of what can go wrong, but is not an indication that there are tons of problems with the 2013 Terrain.

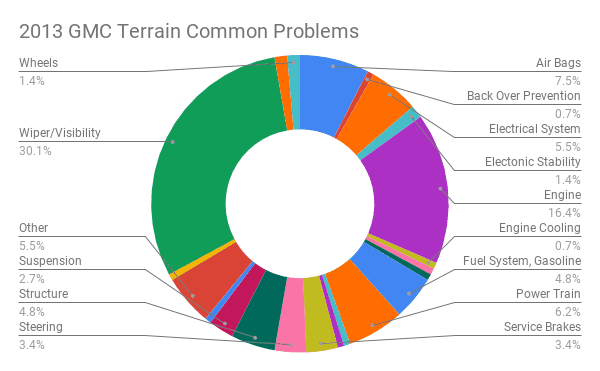

The Top 5 Areas with Issues are:

2013 GMC Terrain Engine Problems

  1. Wiper/Visibility–  30.1% of reported issues come from the wipers.  This is a 2013 model year only issue.  The ball that connects the wiper motor arm to the wipers themselves has a high fail rate.  This can cause one or both wipers to stop functioning at any time.  If you head down to the recalls section lower on the page, you can see how to get in touch with GM to see if the recall has been performed.
  2. Engine– 16.4% of all reported problems with the 2013 GMC Terrain are related to engine issues. Most of them have to do with an oil leak in the 4 cylinder version.
  3. Air Bags– 7.5% of all issues with the ’12 Terrain have to do with the air bag system.
  4. Power Train– 6.2% of all problems The powertrain is any part from the engine to where it makes contact with the road through the wheels. This is almost a catch-all category and shouldn’t be cause for alarm. It could be a bad transmission or bad axle shafts that are the cause.
  5. Electrical System–  Electrical system issues can cover a wide range of problems.  They often are short circuits, backup camera failure, switch failure, or even infotainment issues.  5.5% of the issues are related to it.



2013 GMC Terrain Engine and Powertrain Issues

2013 GMC Terrain Engine Problems

The 2013 GMC Terrain was available with two engines. They were the direct injected Ecotec 2.4L LAF I4 and the 3.0 LF1/LFW V6 engines. The LAF I4 was rated at 182hp and the LF1/LFW was rated at 264hp.

For the most part, they were fairly reliable motors. The number engine problem for this model year is aggressive oil consumption in the four-cylinder version. Here are the most common engine problems with the 2013 GMC Terrain.

Oil Consumption– The reason that the engine causes such a high percentage of problems with the Terrain is oil consumption. The 4 cylinder version leaks oil really bad. It is a known issue. These cars are out of warranty, for the most part. Most of the time, when taken to the dealer, an entire engine rebuild or replace is how they solve the problem.

Stalling– One of the most common issues reported with the 2013 GMC Terrain is stalling out. The problem is that it can stall at speed, which can be dangerous. It’s not nearly as prevalent as the Oil consumption issue.

Chattering on Startup – One of the most common issues with this model year is a chattering sound when trying to fire up the engine. It sounds rough, and will normally only do it for about 10 to 15 seconds after startup.



2013 Terrain Transmission Problems

2013 GMC Terrain Transmission Problems

The 2013 Terrain was equipped with six speed automatic transmissions. They could be manufactured both stateside and in Korea. The 6T45 is a relatively trouble-free transmission. We’ll line out some of the more common problems with it below.

It is considered to be a fill for life transmission. That means that as long as it is operated under normal conditions, it will not require any transmission fluid change. That doesn’t mean that if you are using your Terrain to tow, or for heavy-duty work, that you shouldn’t have it serviced.



Solenoid Problems

Many of the problems that occur with this transmission can be attributed to the fact that it is fully controlled by the engines computer. It uses shift solenoids to accomplish this. When one of them goes bad, it can adversely affect the performance of the transmission.

Here are the main symptoms of a bad Terrain shift solenoid.

  • Failure to Downshift– The 6T45E will often fail to downshift if one or more of the shift solenoids are stuck open or closed. This is due to the fact that the transmission fluid cannot be rerouted to the part of the transmission that would be making the next move. To put it simply, it is stuck doing what it was doing when the solenoid failed.
  • Delay Going in Gear/ Between Gears– If there is a long pause between gear selection and engagement, it can often be attributed to a faulty shift solenoid. Furthermore, if there seems to be a lot of time between when the transmission exits one gear and enters another, than it’s a pretty good indication of a bad shift solenoid.
  • Inconsistent Shifting– Often when a shift solenoid goes bad in the 6T45E, it’ll cause a lot of erratic shift behavior. The transmission will skip gears. It also may act like it is trying to “find the right gear”. Or, to put it another way, it’s can’t quite settle on the right gear.
  • Stuck in Neutral– If a shift solenoid has failed entirely, that it’s entirely possible that the transmission will not work at all. In this situation the transitional will remain a neutral regardless of what gear you put it in.



Most of the problems that occur with a 6T45 shift solenoid are caused by the coil wire going bad in some way. It can go bad in a couple of ways. The plunger can also get stuck. We’ll cover the why and the how here.

You can test the solenoids with an OHM meter. You should be looking for 20-30 ohms of resistance. If no resistance is found, than you know that the solenoid is bad, and that it is broken. If the reading is less than 20 ohms than it’s probably melted. There’s more on both of those conditions and what causes them directly below.



  • Broken Solenoid Coil Wire– In the event that the a solenoid coil wire breaks in your 2013 GMC Terrain transmission, the solenoid will no loner be able to create the magnetic field. A broken shift solenoid wire is going to be caused by a lot of harsh vibration, or high voltage that’s out of the normal range.
  • Melted Solenoid Coil Wire– The results of a melted solenoid coil wire are the same as a broken one, the difference is going to be the conditions that caused the wire to melt. Whereas a broken coil wire is likely to be caused by vibration or high voltage, a melted one is going to be caused extreme transmission temperature or high voltage.
  • Plunger Stuck– The solenoid plunger is an area of failure in the 6T45E. Unlike when the shift solenoids are melted or broken, a stuck plunger can be repaired. Shift solenoids are not expensive. It would be a good idea to replace it if you can afford it. This will keep you from getting under the truck next time the plunger decides to get stuck.A stuck plunger is almost always caused by dirty transmission fluid or debris in the case. You’ll have to replace the transmission fluid anyway, but it’s a good idea to go ahead and change the filter as well. This will really help increase the odds that you won’t be making this repair again anytime soon.
  • Broken/Stuck Spring– There is a spring in the shift solenoid that moves the plunger forward, when it is damaged that movement cannot happen.

Trouble Codes

One of the greatest benefits to a fully electronic transmission is all of the great data that they gather and store in the computer. You can use this information to laser pinpoint exactly what part of the transmission may be failing. Here is a great glossary of all 6T45 trouble codes from Transmission Builders Network.

The great thing about using the trouble codes to diagnose the problems with your 2013 GMC Terrain transmission is that it takes almost all of the guess-work out of it.

Hunting for Gears

Many folks complain a lot about the 6T45 hunting for gears. In a quest to hit ever tightening CAFE fuel economy regulations, the 2013 GMC Terrain will shift A LOT. This doesn’t necessarily indicate that there is anything wrong with the transmission itself. It just takes a little getting used to.

If you feel like it is hunting for gears even more than it was, you may need to have the transmission control module replaced.

NHTSA Recalls: 2013 GMC Terrain

If you are would like to schedule service for any recall, or confirm that they have been done, contact GMC customer service at:

1-800-630-2438

-or-

https://my.gm.com/recalls

You may also wish to check out 2013 Chevy Equinox Problems, since they share the same platform.  There are 2 total recalls on the 2013 model year GMC Terrain.

  1. Key May Be Removed in Gear– Typically, the ignition key should only be removable while in park.  This helps to eliminate any vehicle roll aways.  GM Recall #50491 or 50490
  2. Windshield Wipers May Become Inoperative–  General Motors LLC (GM) is recalling certain model year 2013 Chevrolet Equinox and GMC Terrain vehicles. In the affected vehicles, the ball joints in the windshield wiper module may corrode and wear over time, possibly resulting in one or both of the windshield wipers becoming inoperative.  GM Recall 25302
