2015 Chevy Cruze: Headlight Bulb Numbers + Install Procedure

Directly below are all of the various light bulb numbers that your 2015 Chevy Cruze requires.  Further down the page are written replacement instructions for each bulb, if you need that as well.

2015 Chevy Cruze Headlight Bulb Numbers



2015 Chevy Cruze Replacement Bulbs

Here are the proper bulbs that your Cruze needs, straight from GM.



Function Image Bulb Number Need One?
Back Up Lights 921K
Front/Rear Sidemarker
194 See Current Price
Front Parking/Turn Signal
7444NA
Headlights
Daytime Running
H13LL
Rear Turn Signal 7443NA
Stop Lamp/Tail Lamp
3057K¹ LCP
License Plate Light
W5W² LL

Source:  2015 Cruze Owner’s Manual Page 10-37

  1. The K in 3057K stands for Krypton.  They are hard to find and can be replaced with a standard 3057 bulb no problem.

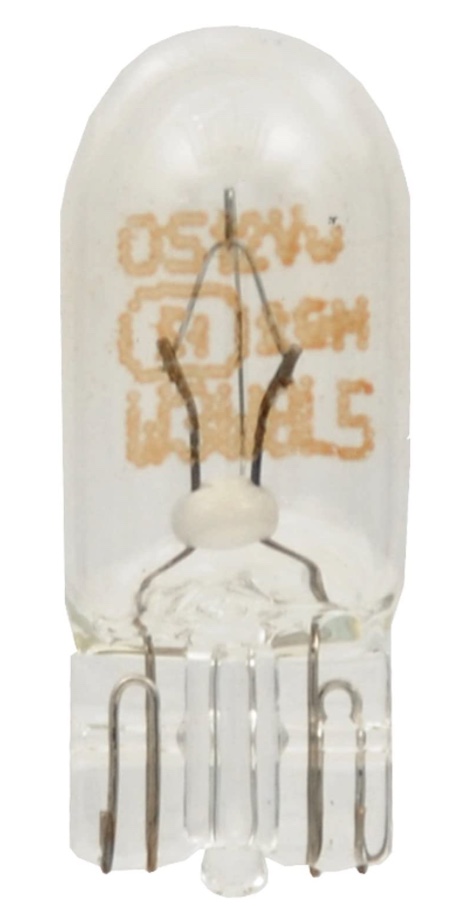

  2. W5W is impossible to find and may be discontinued, however it is interchangeable with 2825.



2015 Cruze Headlight Replacement Procedure

Bulb Number: H13LL/H13

2015 Chevy Cruze Headlight Replacement
Headlight Diagram 1
  1. Open the hood.
  2. Remove the harness retaining tab “A”
  3. On the top of the connector is a release tab “B”.  Press it and gently pull back.  Don’t use the wiring to pull.
  4. With the harness removed, twist the bulb counterclockwise.
  5. Pull the bulb straight out.  Note the angle of the harness plug, this will make installation easier.
  6. Insert the new bulb and turn it clockwise.
  7. Insert the wiring harness until the connector “B” snaps back into place.
  8. Install “A” retaining tab





2015 Cruze:  Turn Signal and Parking Lamp Replacement Procedure

Bulb Number:  7444NA

2015 Cruze Turn Signal Replacement

  1. Open the hood.
  2. The parking turn/signal bulb socket will be easy to see.  Turn it counterclockwise.
  3. Remove the bulb from the socket by pulling it straight out.  Gently wiggle while pulling if necessary.
  4. Install the new bulb into the empty socket.
  5. Put the socket back into the headlight assembly and turn it clockwise.  You’re done!



2015 Cruze:  Taillamp  Replacement Procedure

The inboard tailamps are the only lights that swing up when the trunk opens.  Everything on the back of the 2015 Cruze is attached to the tailamp assembly.

Diagram 1
  1. Pop the trunk.
  2. You’ll need to remove the truck deck trim cover “A” (diagram 1 ⬆️).
  3. The bulb socket is in location “B” (diagram 1⬆️)
  4. Turn it counterclockwise and pull it out (diagram 2⬇️).
  5. The bulb pulls straight out of the socket.
  6. Push the bulb into the socket.
  7. Turn the socket clockwise back into the assembly.
  8. Reconnect the trunk deck trim cover.


2015 Chevy Cruze Rear Headlight Diagram

2015 Cruze:  Turn Signal, Stop Lamp, and Back-UP Lamp Replacement Procedure

2015 Cruze Taillight Reference
A: Reverse Lights B: Stoplight/Tailamp C. Turn Signal D. Side Marker



  1. Pop the trunk.
  2. There’s two screw covers that need to be popped off before you can access the screws.
  3. Remove the screws (diagram 1 ⬇️).
  4. Now that the screws are gone, there are two posts that connect the headlight assembly to the vehicle (diagram 2 ⬇️).  Pull straight back.
  5. See diagram 3 ⬇️ to determine which socket you need to pull.
  6. Turn the socket counterclockwise to remove it.
  7. Pull the old bulb out of the socket.
  8. Push the new bulb into the socket.
  9. Put the socket back into the taillamp assembly and turn it clockwise.
  10. Align the two grommets in diagram 2 and install the taillamp assembly.
  11. Tighten the screws and put the screw cover back on.



Diagram 1

Diagram 2



A. Sidemarker Lamp B. Turn Signal Lamp C. Stop Lamp/Taillamp D. Back-up Lamp (Diagram 3)



2015 Chevy Cruze License Plate Light Replacement Procedure

2015 Chevy Cruze License Light Repair
Diagram 1
  1. There are two screws that hold the license plate light on.  Unscrew them and it will drop right out.
  2. Turn the socket counterclockwise (usually a quarter of a rotation) and pull it free from the lamp assembly.
  3. Pull the old bulb out, and replace it with a new one.
  4. Reverse the disassembly procedure.



2015 Cruze Headlight Fuse Location

If you have a light that is not working properly after replacing the bulb, it’ll either be a problem with the socket, wiring harness, or fuse box.  Take a look at the fuses first.  It’s the easiest thing to do out of these three common issues.

The location for all of the 2015 Chevy Cruze’s headlight related fuses is in the fuse box that resides under the hood.  It’s right by the battery.  Directly above it.

You’ll need to pop off the protective dust cover in order to gain access to the fuse panel.

37:  High Beam Right Side
38:  High Beam Left Side
48:  Fog Lights
54:  Light Switch



If all of the fuses are good, you’ll need to take a look at the socket and see if it’s getting any power.  A good test light can help you with that.

If the socket doesn’t have power, check the ground going to it.  If that checks out, you’ll need to trace the harness from the fuse box to the bulb and figure out where it is losing power.
